Description

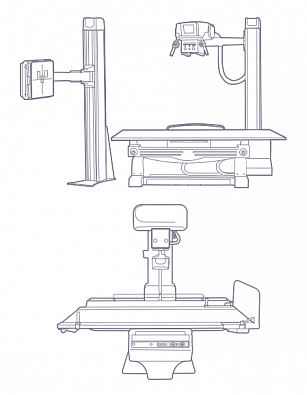

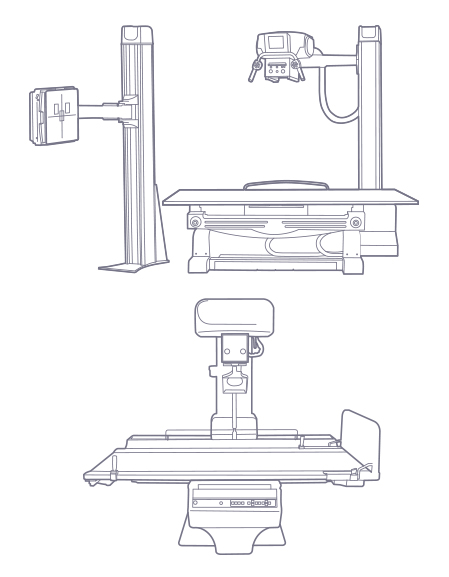

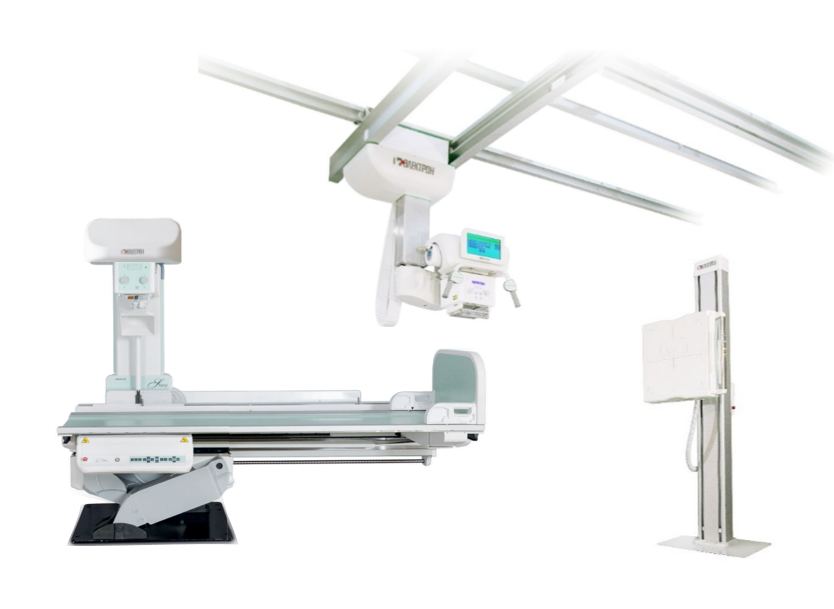

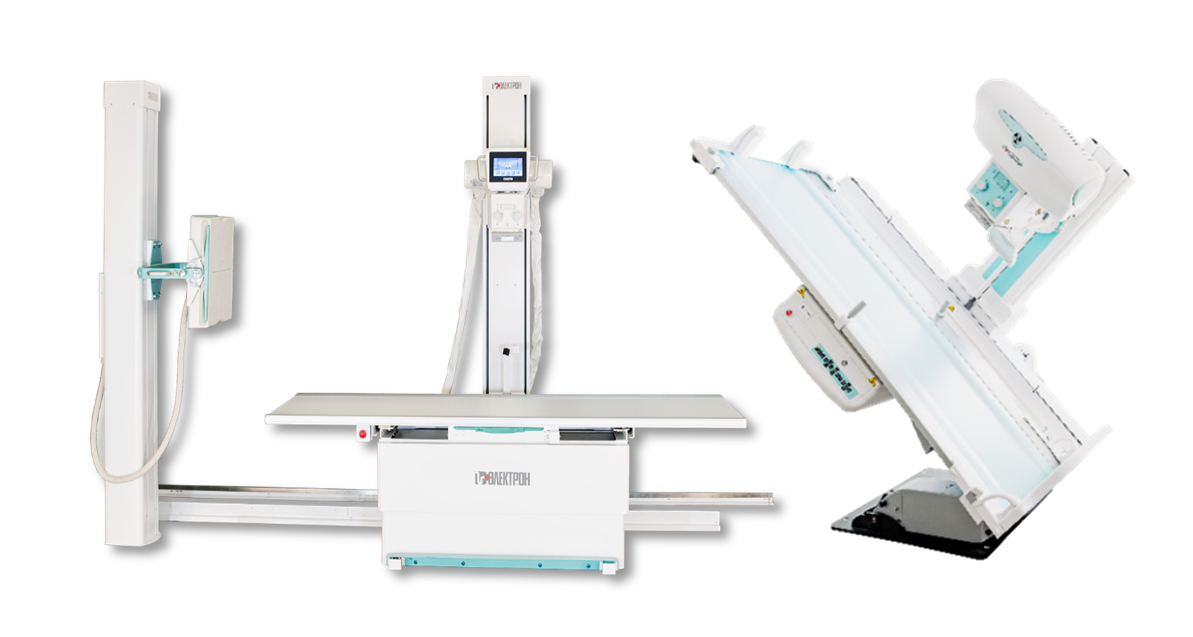

The range of digital radiography/fluoroscopy systems produced by NIPK Electron Co. is a versatile solution allowing to perform the whole examination range in radiography, linear tomography and fluoroscopy modes, which is relevant in modern radiology.

A specific feature of the system developed by the company is that the system includes a fluoroscopy tilting table with remote control and so all examinations can be performed from the control room. This ensures the operator’s comfort and safety.

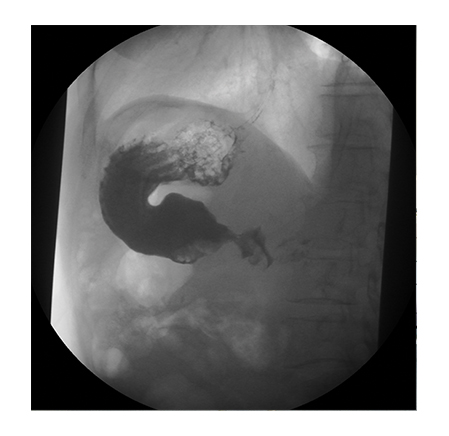

A modern digital imaging system provides for high image quality. A table for images and a vertical stand are fitted out with large format detectors. It provides for the comfortable performance of any examinations including that of large anatomical regions. Besides, the image has high spatial resolution with the minimum exposure dose for the patient. The high resolution ensures imaging of even minor details in the image, which is a quality guarantee of diagnostics performed.

The stand design has been developed with the maximum possible consideration of the requirements of Russian radiologists. The availability of an elevating tabletop allows regulating its position as required. This facilitates patient positioning to ensure comfort for elderly and injured patients, people with disabilities, and younger children.

The wide range of stand movements provides the possibility to implement even the most complex views and nonstandard positions. The system is fitted out with two ergonomic panels: for remote control of the fluoroscopy tilting table and for direct control at the table. All these features make the system manufactured by NIPK Electron Co. the most convenient digital radiography/fluoroscopy system for the medical staff and patients.

If necessary, the technical solutions used in the system allow establishing a remote connection online to diagnose and remove faults as well as setting up the system in accordance with user demands.

Benefits

Easiness, simplicity, and user-friendliness

Possibility to control movements of a fluoroscopy tilting table remotely
Possibility of control directly beside the fluoroscopy tilting table
Motorized movement of stands, a detector, an X-ray source, and tabletop
User-friendly ergonomic remote control console
Color touch display
Multilingual interface

High diagnostic image quality

State-of-the-art digital imaging system
Automated program filters for image processing
High spatial resolution
Maximum possible size of the detector active area
State-of-the-art analysis of examination findings
High fluoroscopy rate

Mobility and multifunctionality

The widest range of system movement
Wide range of tomography angle setting
Diagnostic imaging of the extremities with the examined region positioned directly on the detector surface
Examinations in oblique, axial, and tangential views

Safety and low exposure dose

Highly sensitive digital X-ray detectors
Removable grid
Wide APR program range for patients of various ages and body-build
Automatic exposure control (AEC)
Possibility to perform all examination types, including fluoroscopy, from the control room

Reliability and durability

Reliable fixed digital detectors
Elaborated and reliable stand design
The generator uses the up-to-date knowledge in the field of voltage stabilization and protection against voltage fluctuations and power surges.

Basic configuration *

Digital radiography/fluoroscopy systems

Description

High voltage generator (HVG)

from 50 kW; from 65 kW

Flat panel detector for fluoroscopy

Digital I.I.

Flat panel detector for radiography

Flat panel detector

Vertical stand

Elevating table top
Motorized movement of stands, detector, X-ray source and table top
The stand with the possibility to move a detector beneath a mobile patient table and for imaging the extremities directly on the detector
X-ray tube assembly with motorized movement providing for focal distance maintenance and automatic X-ray tube assembly positioning onto a detector of a vertical stand

Automated workstations (AWS)

Operator’s workstation for system control (radiology technician’s AWS)
Workstation for the work with examination findings (radiologist’s AWS)

Additionally:

medical monitors
medical printer
clinician’s workstations
operator’s workstations
PACS-server

Specialized software (SW) for radiology technicians and radiologists

Operating the patient and image databases
Specialized APR programs including that for pediatrics
Multimodality
Support of DICOM 3.0 standard
Image postprocessing
X-ray dosimetry
Color X-ray technology

Specialized appliances for patient positioning

X-ray transparent step
Positioning systems of children of various age groups

X-ray radiation protective equipment for patients and staff

X-ray protective clothes for the medical staff
Personal protection equipment for patients
X-ray protective windows of different sizes

*The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.
