Description

A rational solution for routine radiography combines easiness to operate the systems, ergonomic design and reliability even during the intensive use, high diagnostic image quality.

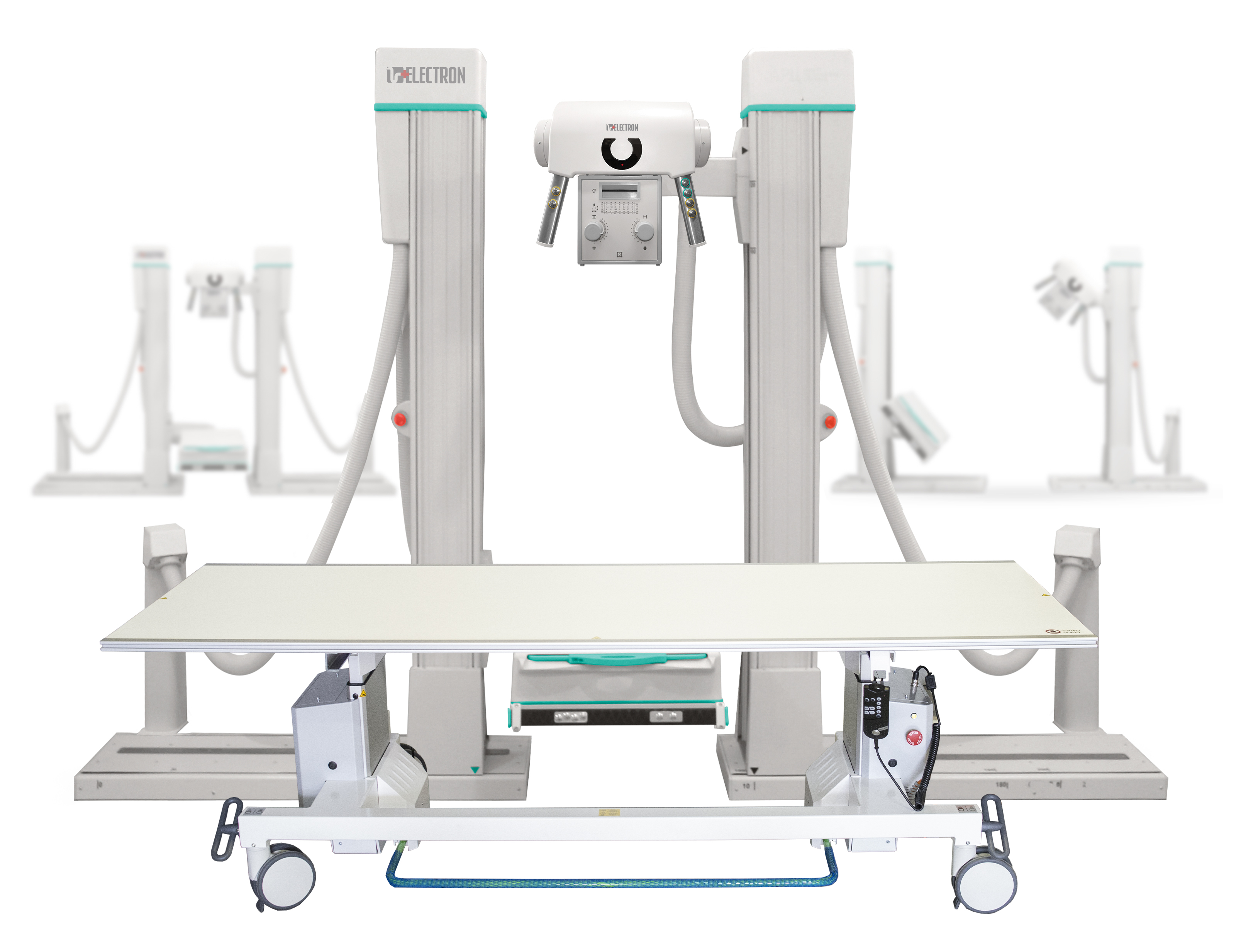

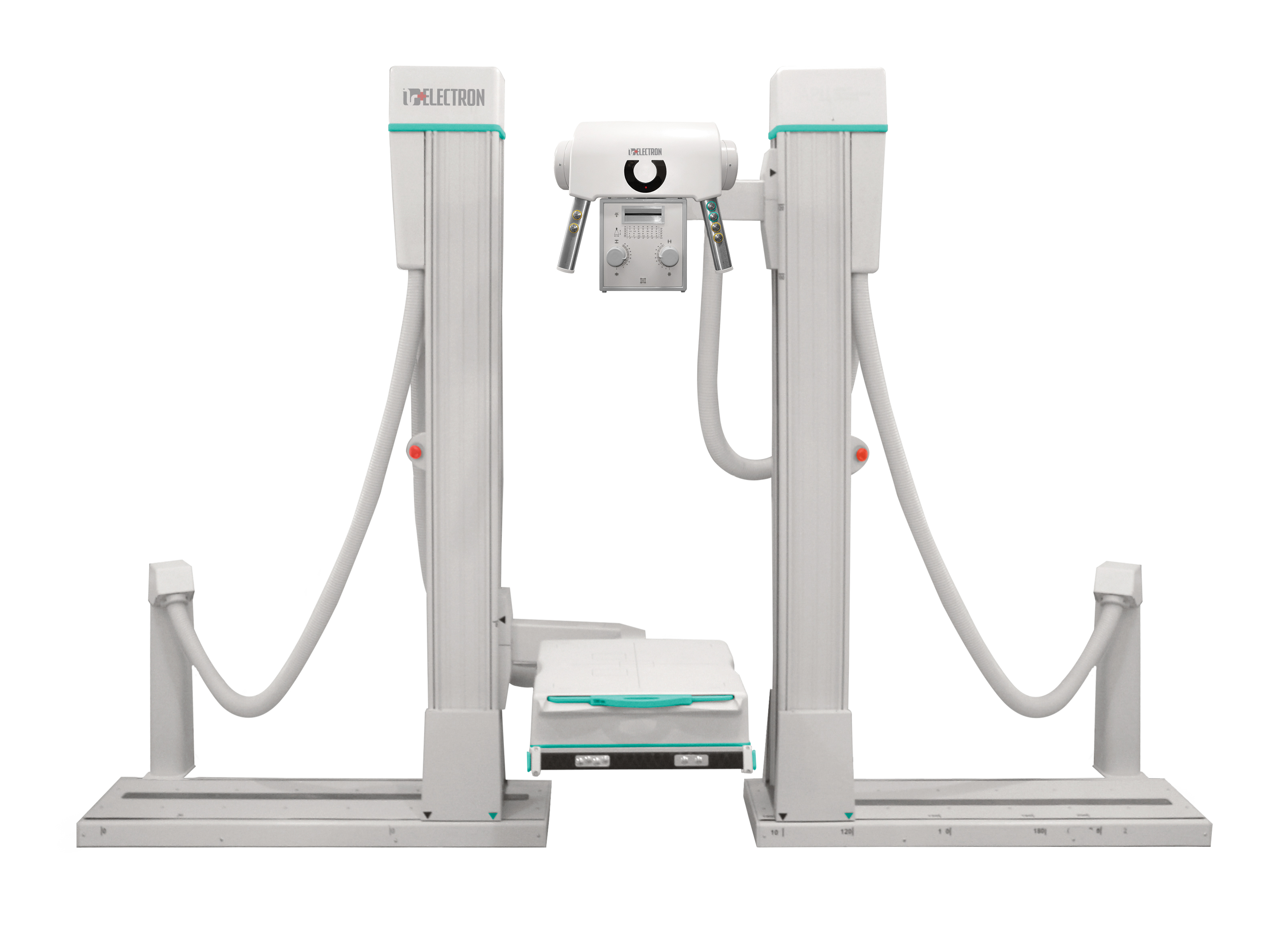

The unique design of digital radiography systems with а mobile table makes is possible to perform examinations without unnecessary movements of the patient implementing even the most complex views/positions. The detector and the X-ray tube assembly move freely around the patient, allowing them to stay in a comfortable position, which is particularly important for nonmobile and injured patients. The systems are fitted out with a mobile patient table, which can be used as a trolley for patient transportation. All these features significantly facilitate the work of a radiology technician, lowers the staff exertion, saves time for performing an examination, and increases the X-ray room throughput.

All equipment of the NIPK Electron are included in the unified register of Russian radioelectronic products (REP) (in accordance with the decree of the Government of the Russian Federation dated July 10, 2019 No. 878) and in the register of Russian industrial products (in accordance with the decree of the Government of the Russian Federation dated July 17, 2015 No. 719)

A maximally easy and comfortable control system allows mastering the skills for operating the system in the shortest possible time. A specially designed X-ray positioning guide app helps a technician make a scan correctly: when the examined anatomical region and a view are selected, the program suggests a prompt, i.e., the picture illustrating the optimum way to position the patient.

An imaging system based on a flat panel detector, specialized program filters, APR programs, which consider the patient’s age and body build, allow obtaining a high-quality image with minimum exposure dose.

Digital radiography systems with a mobile table occupy a small area and can have both the right-sided and the left-sided position of the tube stand. This allows arranging the working space effectively.

If necessary, the technical solutions used in the systems allow establishing a remote connection online to diagnose and remove faults as well as setting up the system in accordance with user demands.

Benefits

Mobility and multifunctionality

Possibility to realize all required patient’s views/positions (in the upright, the sitting, and the supine position)

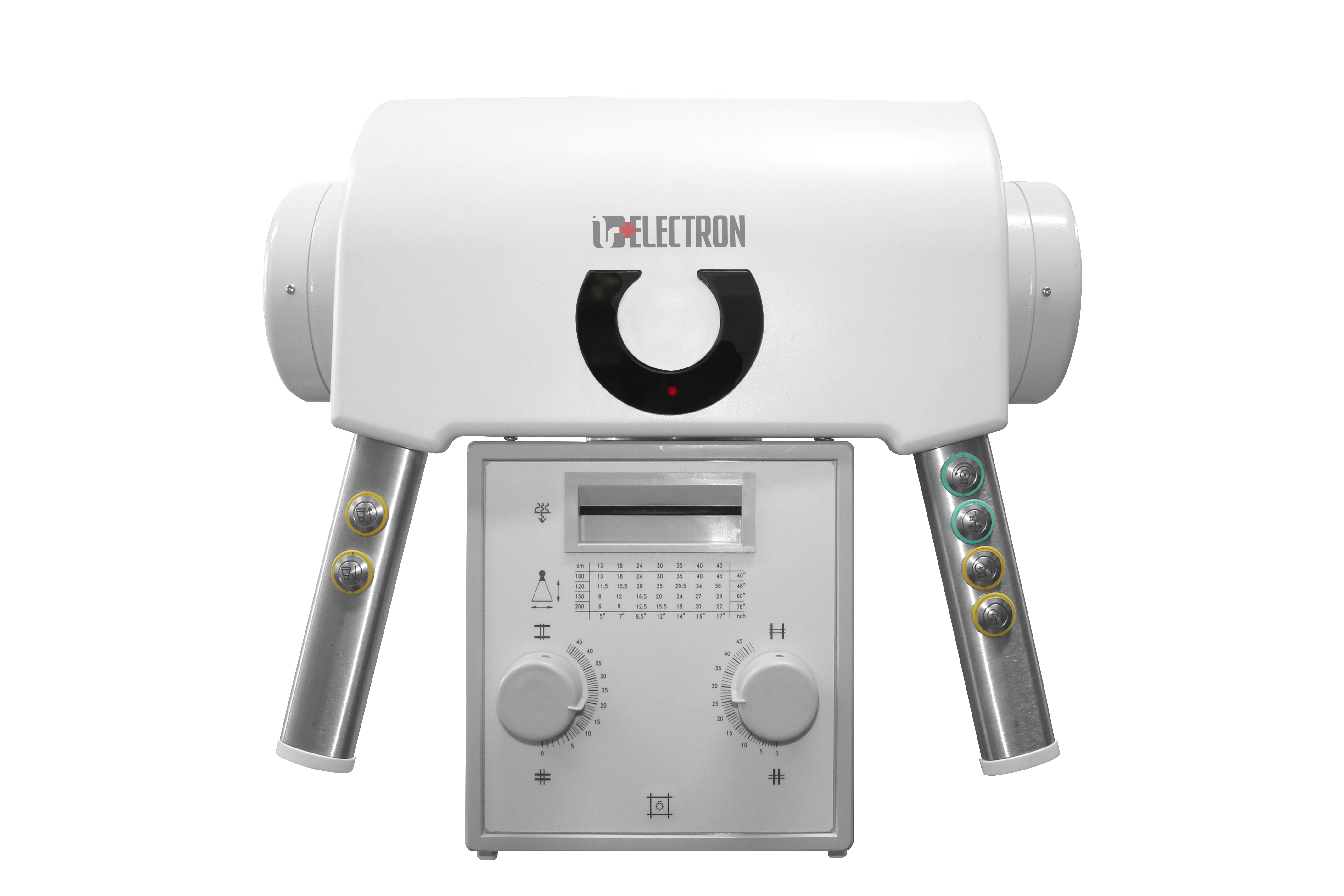

Free movement of a detector and X-ray tube assembly around a patient
Mobile patient table
Implementation of complex views/positions
Performing examination of the extremities directly on the detector surface, without the need to position the patient on the table
Performing examinations in a lateral position on a mobile patient table

Easiness, simplicity, and user-friendliness

Ergonomic control system
Built-in electronic X-ray positioning guide app
Multilingual interface
Motorized stand movement
Small dimensions and the minimum occupied area
The left-side or the right-side position of the tube stand
Rapid and easy preparation for an examination
High X-ray room throughput

High diagnostic image quality

State-of-the-art digital imaging system
Automated program filters for image processing
High spatial resolution
Maximum possible size of the detector active area
State-of-the-art analysis of examination findings

Safety and low exposure dose

Highly sensitive X-ray detector
APR programs for patients of different ages and body-build
Automatic exposure control (AEC)
Special collision protection sensors

Reliability and durability

Simple system design to minimize the probability of damages
Simple and reliable controls
The generator uses up-to-date knowledge in the field of voltage stabilization and protection against voltage fluctuations and power surges.

Basic configuration *

Digital radiography systems with a mobile table

Description

High voltage generator (HVG)

from 30 kW; from 50 kW; from 70 kW

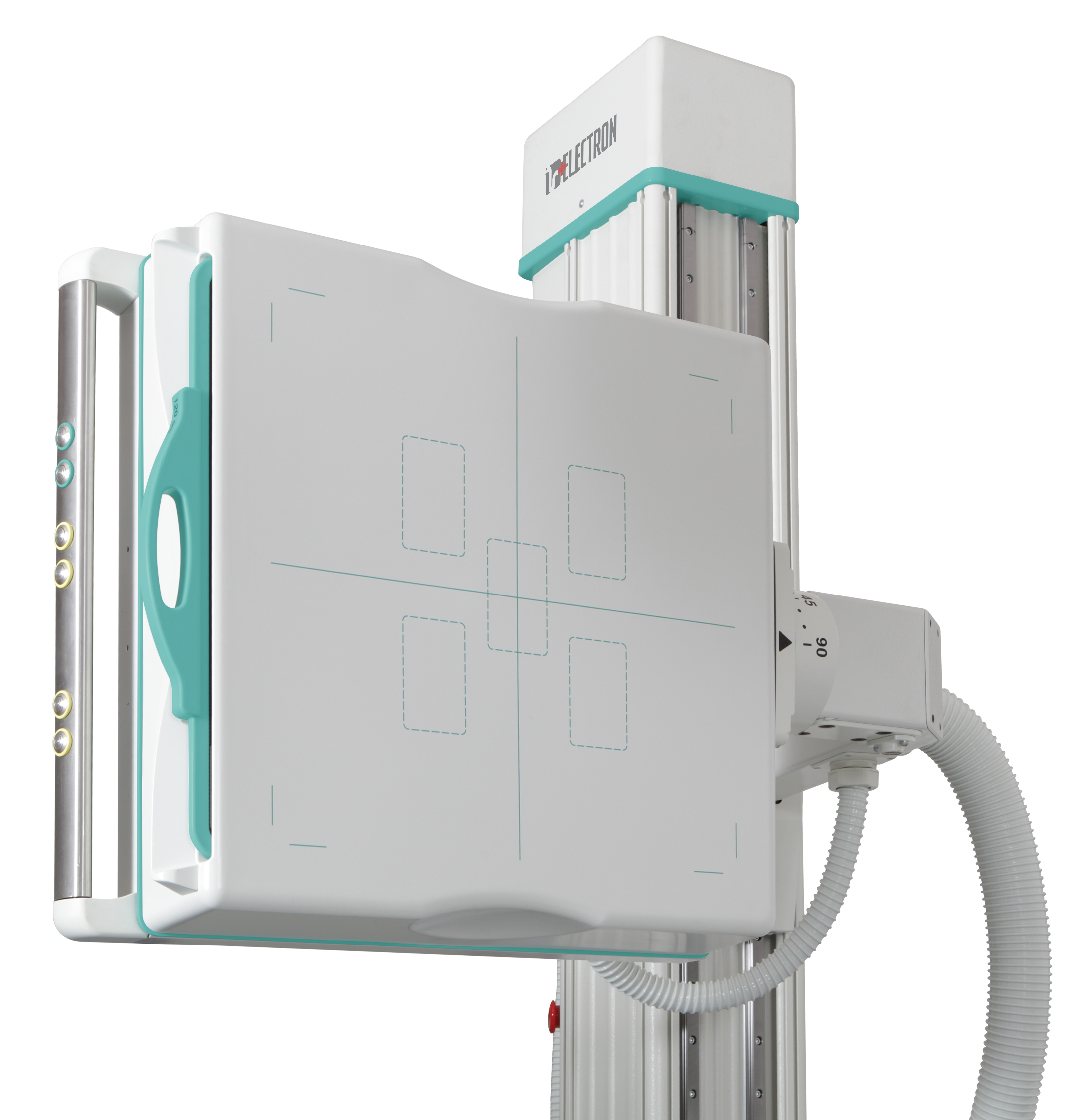

Digital detector

Flat panel detector

Automated workstations (AWS)

Unified technician’ and radiologist’s AWS (a workstation combining the system control functions and functions of work with examination findings)

Operator’s workstation for system control (radiology technician’s AWS)
Workstation for the work with examination findings (radiologist’s AWS)

Additionally:

medical monitors
medical printer
clinician’s workstations
operator’s workstations
PACS-server

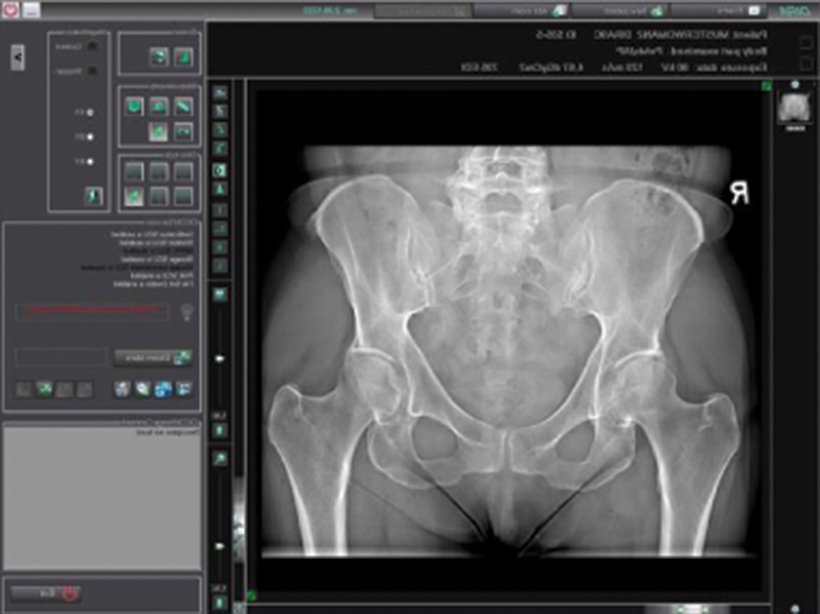

Specialized software (SW) for radiology technicians and radiologists

Operating the patient and image databases
Specialized APR programs including that for pediatrics
Multimodality
Support of DICOM 3.0 standard
Image postprocessing
X-ray dosimetry
Color X-ray technology

Mobile patient tables

A light mobile patient table
Mobile patient table with elevated and floating table top

Specialized appliances for patient positioning

X-ray transparent step
Positioning systems of children of various age groups

Assembling the system taking into account peculiarities of the room

Assembling the stand both on the right and the left side
The base rail can be assembled at the floor level or higher depending on peculiarities of the room

X-ray radiation protective equipment for patients and staff

X-ray protective clothes for the medical staff
Personal protection equipment for patients
X-ray protective windows of different sizes

* The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.
