Description

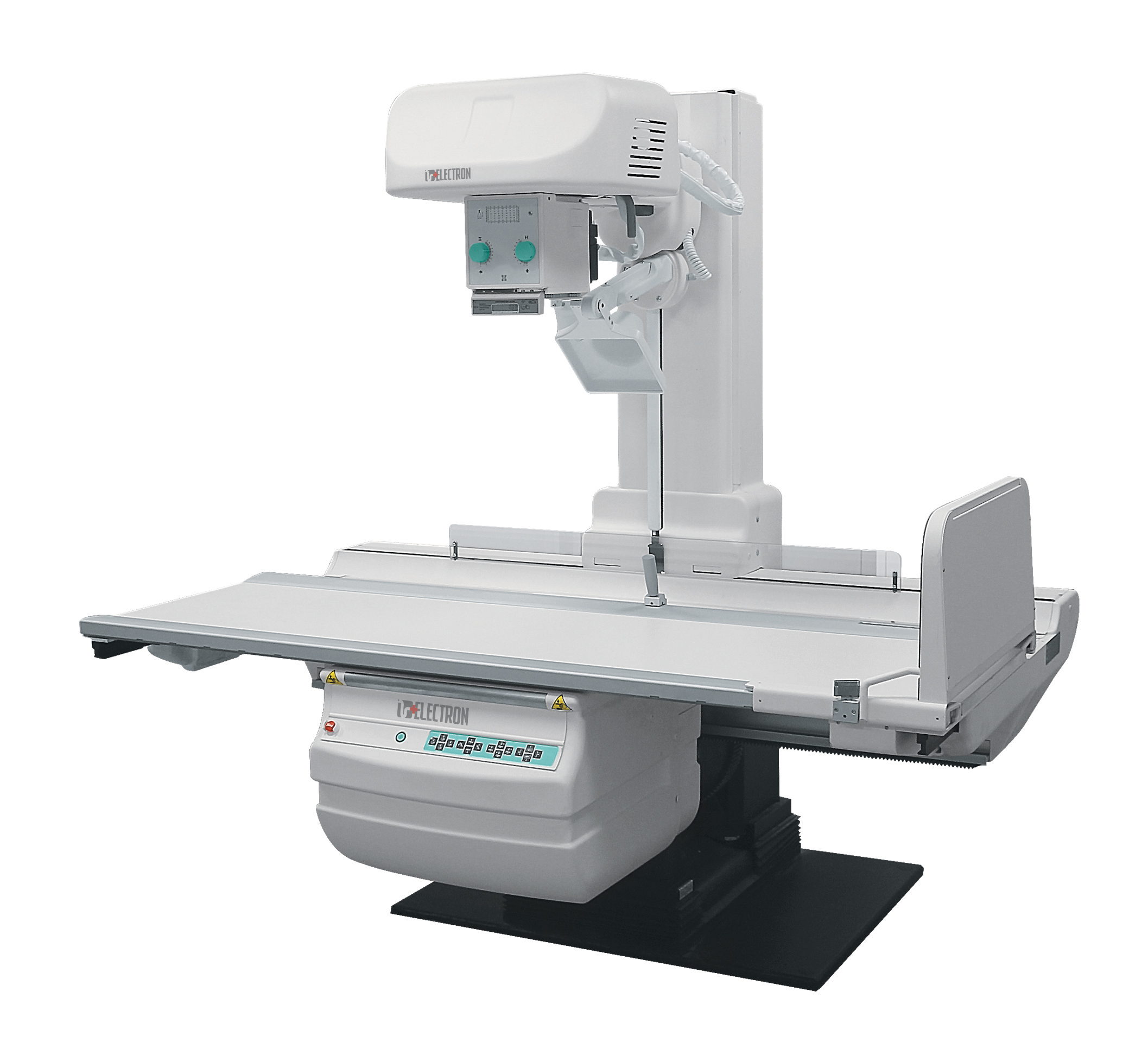

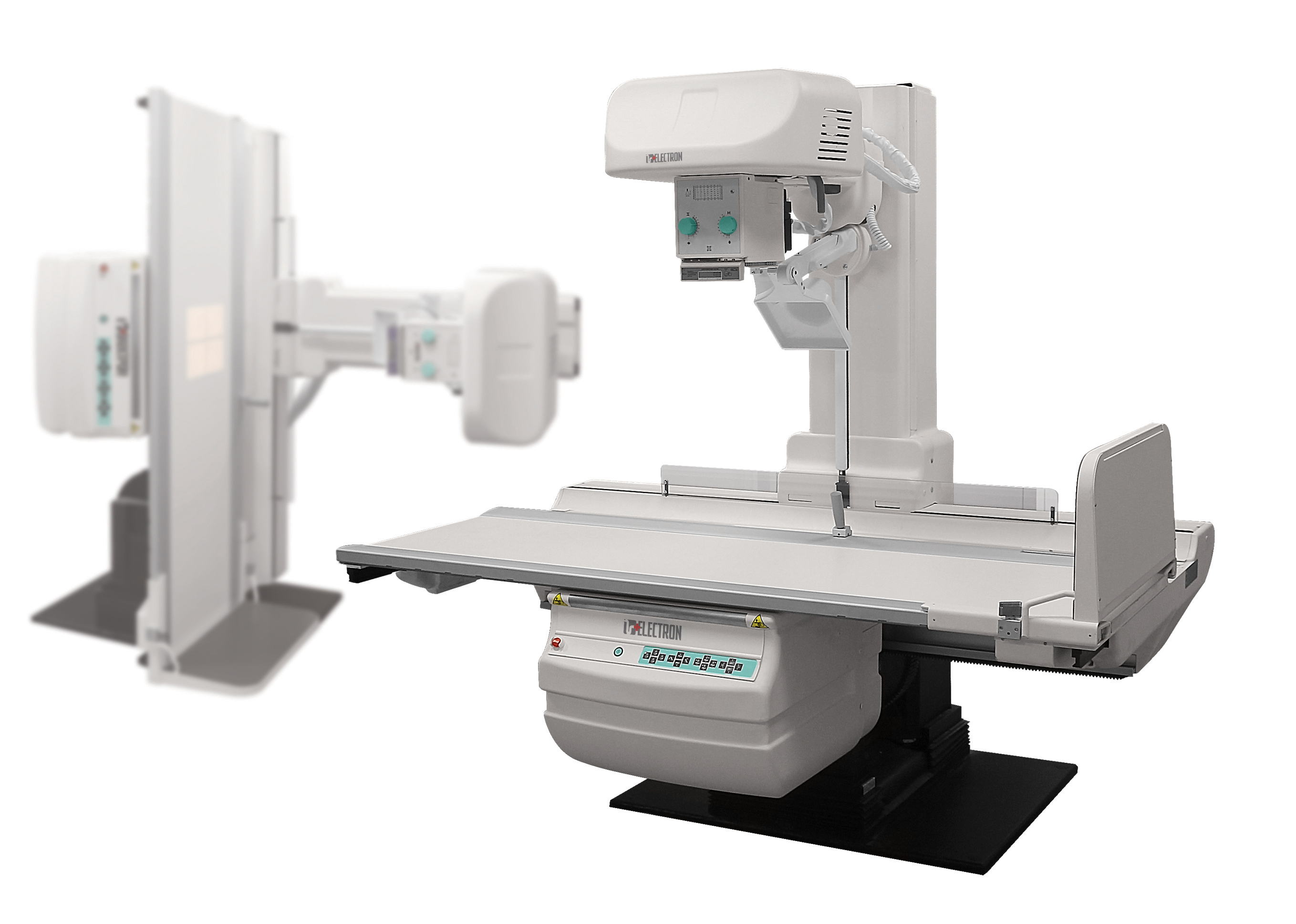

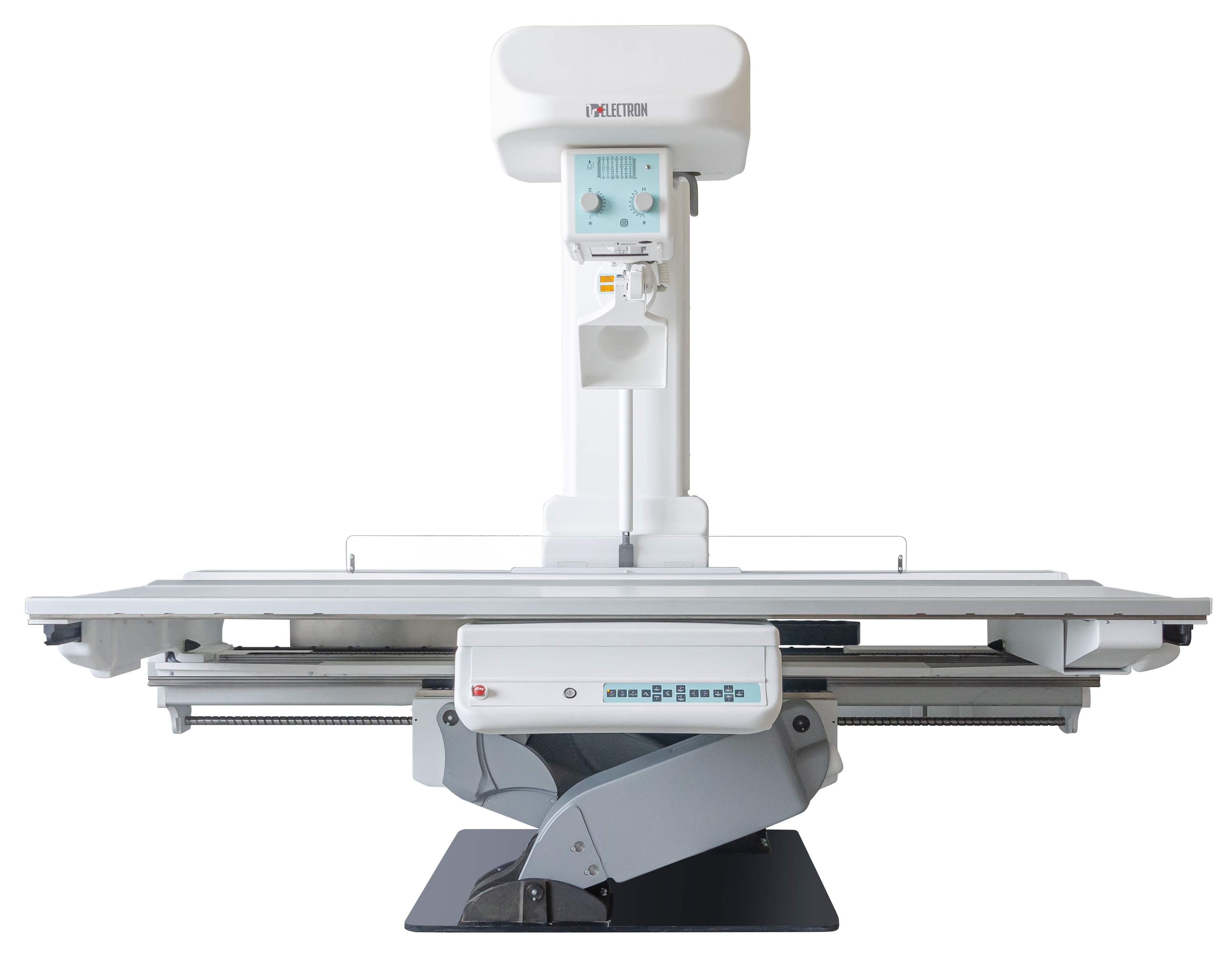

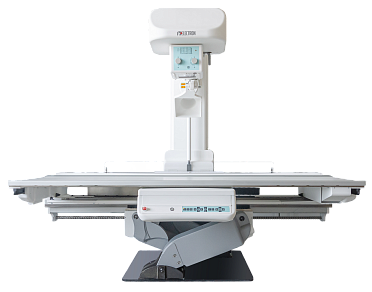

The remote-controlled system is a compact and versatile X-ray system for diagnostics of disorders of different organs and systems of the human body. The range of remote-controlled systems manufactured by NIPK Electron Co. makes it possible to perform various high-quality investigations, e.g. radiography, fluoroscopy, or linear tomography.

An imaging system based on a modem dynamic flat panel detector allows performing X-ray diagnostics examinations with unsurpassed quality and high accuracy. The high spatial resolution and minimum exposure dose are ensured due to a small pixel size. The absence of geometric distortions, large detector area and immediate switching of radiography and fluoroscopy modes allow ensuring error-free diagnostic imaging.

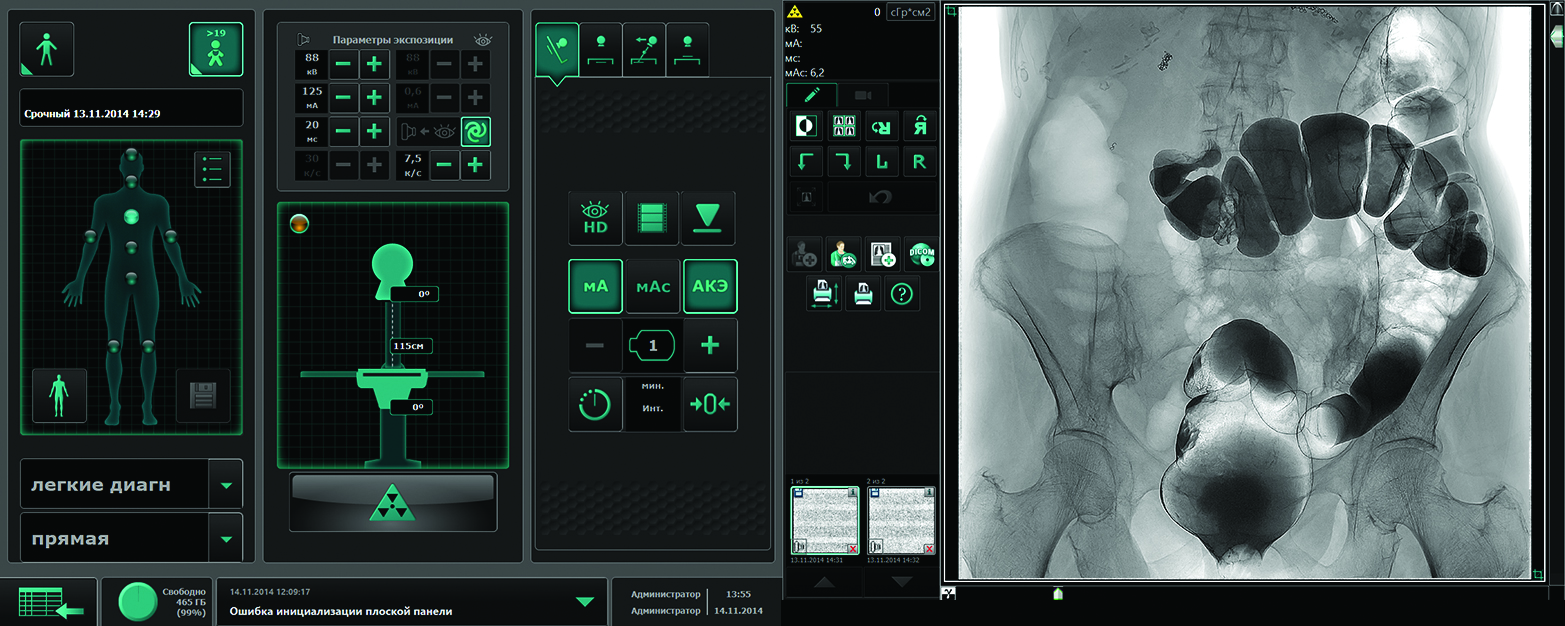

All system functions can be controlled remotely from the control room using a color touch display. The multilingual software developed by the engineers of NIPK Electron Co together with healthcare professionals is installed at the radiology technician’s workstation.

Thanks to this, the radiology technician’s AWS has the whole range of functions including keeping the patient database, imaging parameter control, image processing functions, automated generation of statistical reports according to the formats adopted in Russia, and many other things.

The examined organ and view are selected using a user-friendly, self-explanatory graphic interface. Depending on the patient’s body habitus, a radiologist or a radiology technician can select one of three types for automatic setting up of exposure parameters. Besides, the programs for imaging the adults and children of different ages including infants are saved in the system memory.

If necessary, the technical solutions used in remote-controlled system allow establishing a remote connection online to diagnose and remove faults as well as setting up the system in accordance with user demands.

Benefits

High diagnostic image quality

State-of-the-art digital imaging system
Automated program filters for image processing
High spatial resolution
High fluoroscopy rate
Maximum possible size of the detector active area
State-of-the-art analysis of examination findings

Easiness, simplicity, and user-friendliness

Possibility of remote control of all system functions and movements
User-friendly ergonomic remote control console
Color touch display
Multilingual interface
Additional control console on the system stand

Mobility and multifunctionality

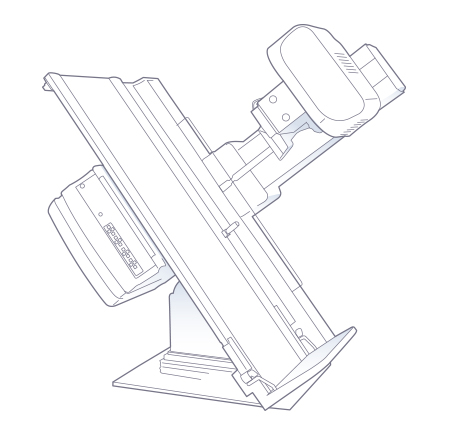

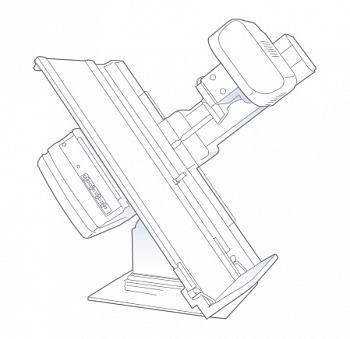

The widest range of system movement
Possibility to set up the angle and velocity of linear tomography on an individual basis
Maximum focal distance of up to 180 cm
Immediate switching between the radiography mode and the fluoroscopy mode

Safety and low exposure dose

Highly sensitive X-ray detector
Removable grid
Wide APR program range for patients of different age and body-build Automatic exposure control
Possibility to perform fluoroscopy examinations not exposing the staff to radiation

Reliability and durability

Reliable fixed digital detector
Elaborated and reliable stand design
The generator uses the up-to-date knowledge in the field of voltage stabilization and protection against voltage fluctuations and power surges

Basic configuration *

Remote-controlled systems

Description

High voltage generator (HVG)

from 50 kW; from 65 kW

Flat panel detector for fluoroscopy

Digital I.I.
Dynamic flat panel detector

Flat panel detector for radiography

Film cassettes, CR-cassettes with cassette digitizer
Flat panel detector for radiography
Versatile (dynamic) flat panel detector

Vertical stand

Vertical bucky stand

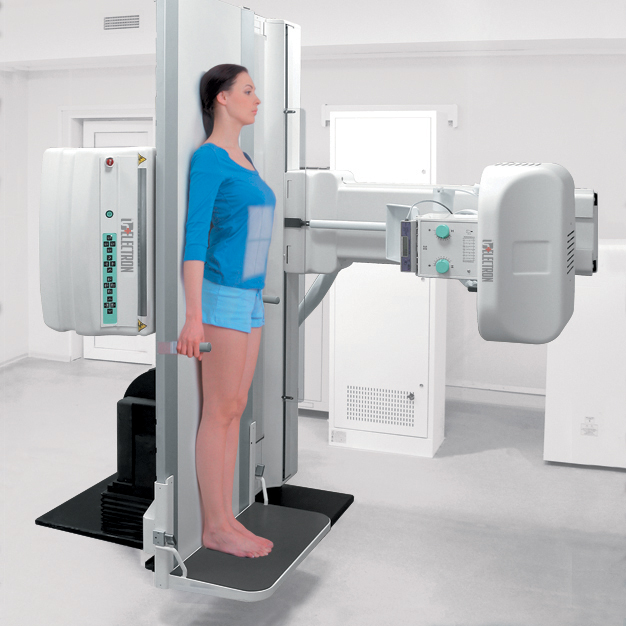

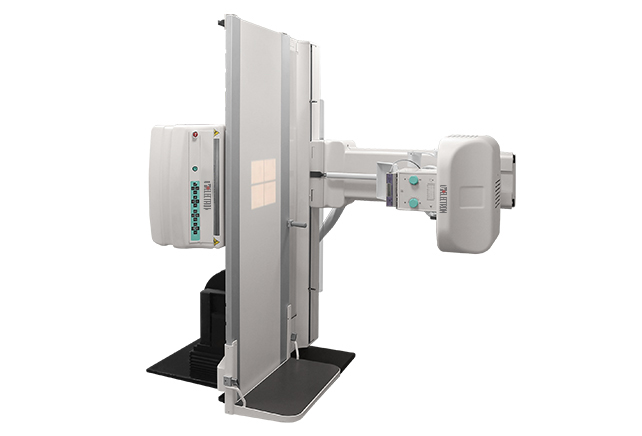

Vertical stand with fixed flat panel detector

Automated workstations (AWS)

Operator’s workstation for system control (radiology technician’s AWS)
Workstation for the work with examination findings (radiologist’s AWS)

Additional:

medical monitors
medical printer
clinician’s workstations
operator’s workstations
PACS-server

Specialized software (SW) for radiology technicians and radiologists

Operating the patient and image databases
Specialized APR programs including that for pediatrics
Multimodality
Support of DICOM 3.0 standard
Image postprocessing
X-ray dosimetry
Color X-ray technology

X-ray radiation protective equipment for patients and staff

X-ray protective clothes for the medical staff
Personal protection equipment for patients
X-ray protective windows of different sizes

* The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.
