Description

Versatile X-ray diagnostic system meets the highest medical diagnostics requirements. Due to advanced technologies and automation of diagnostics, the highest level of comfort is achieved for both the patient and the staff, the maximum throughput of the room is ensured, and an unlimited range of X-ray examinations is implemented.

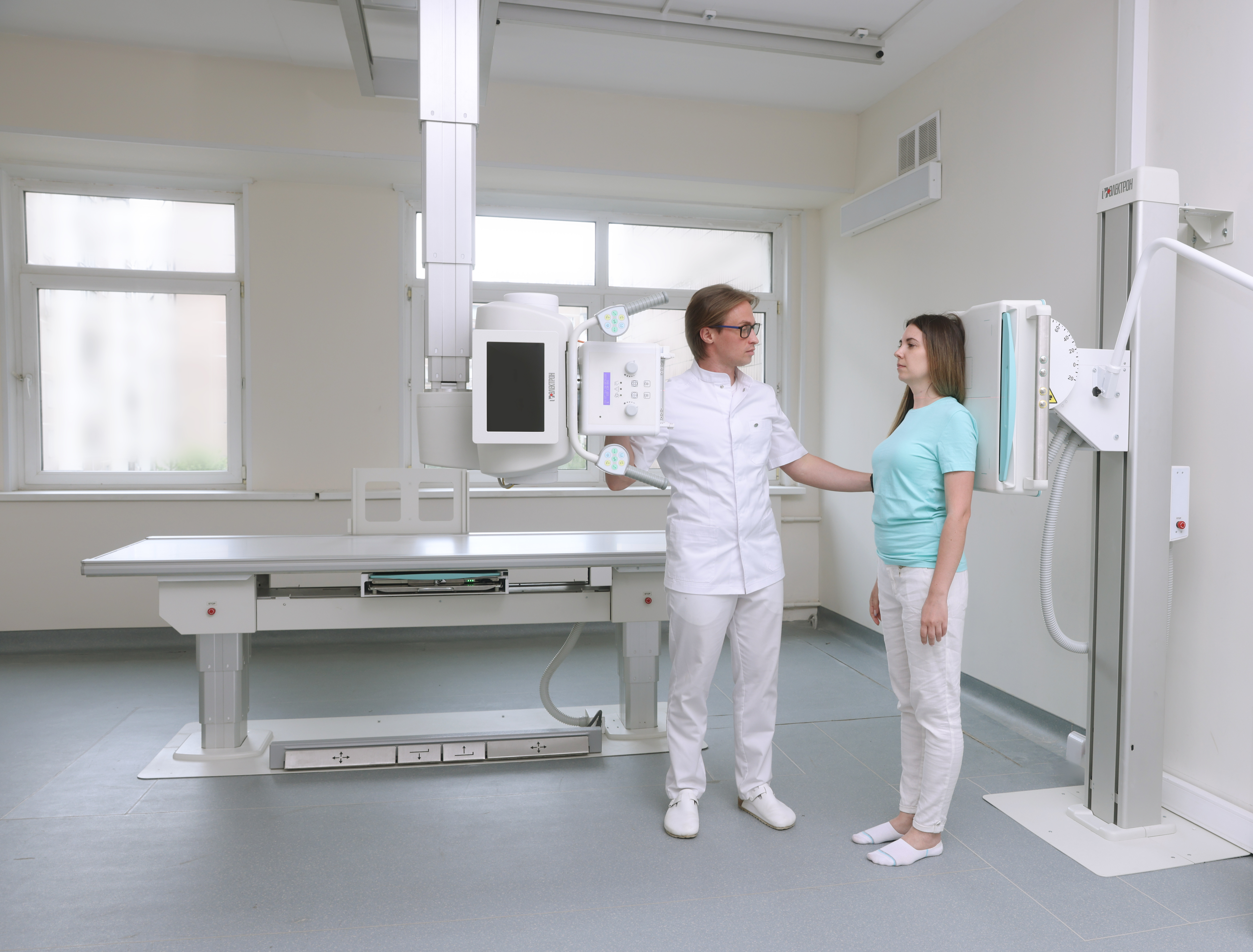

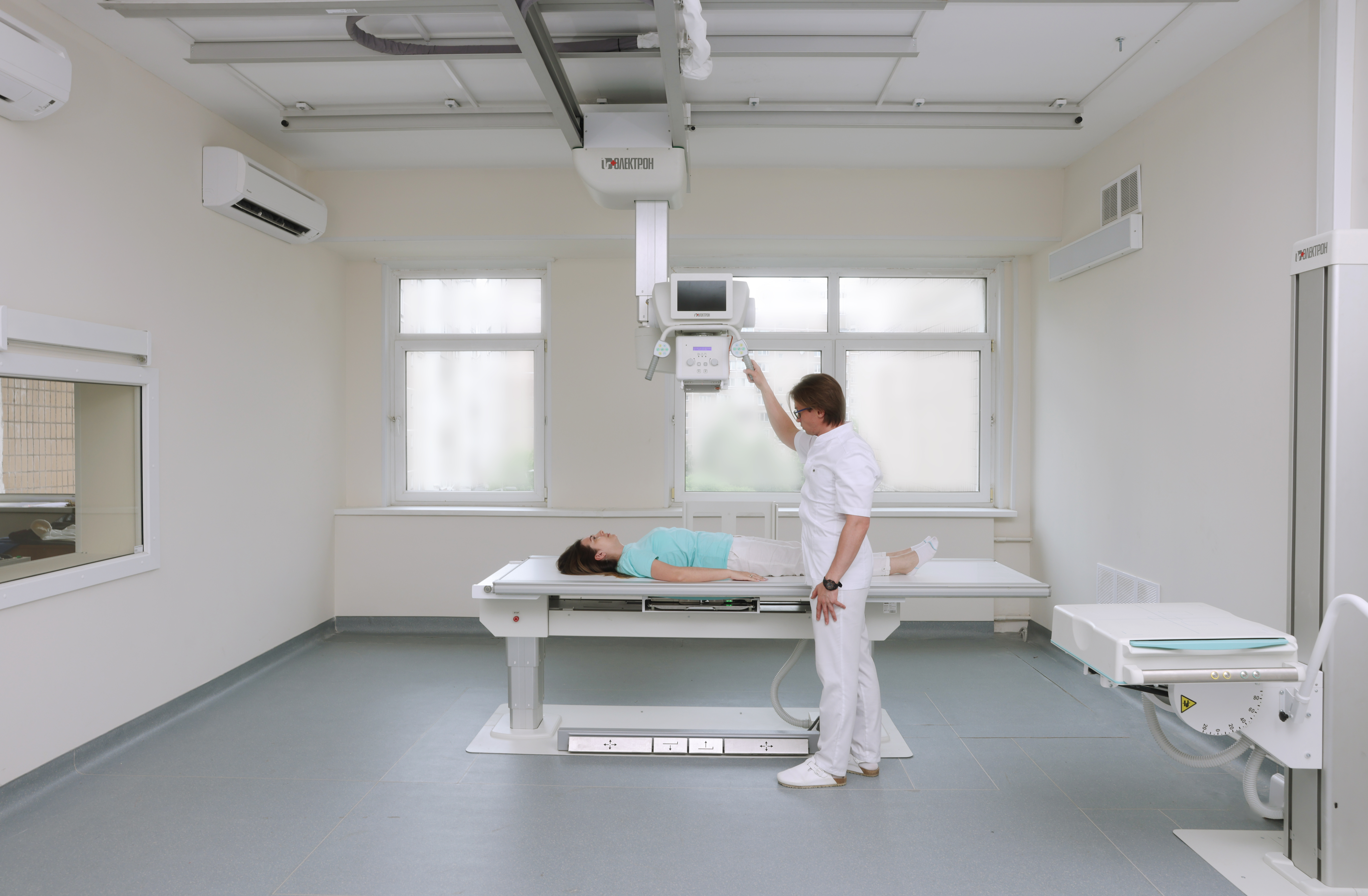

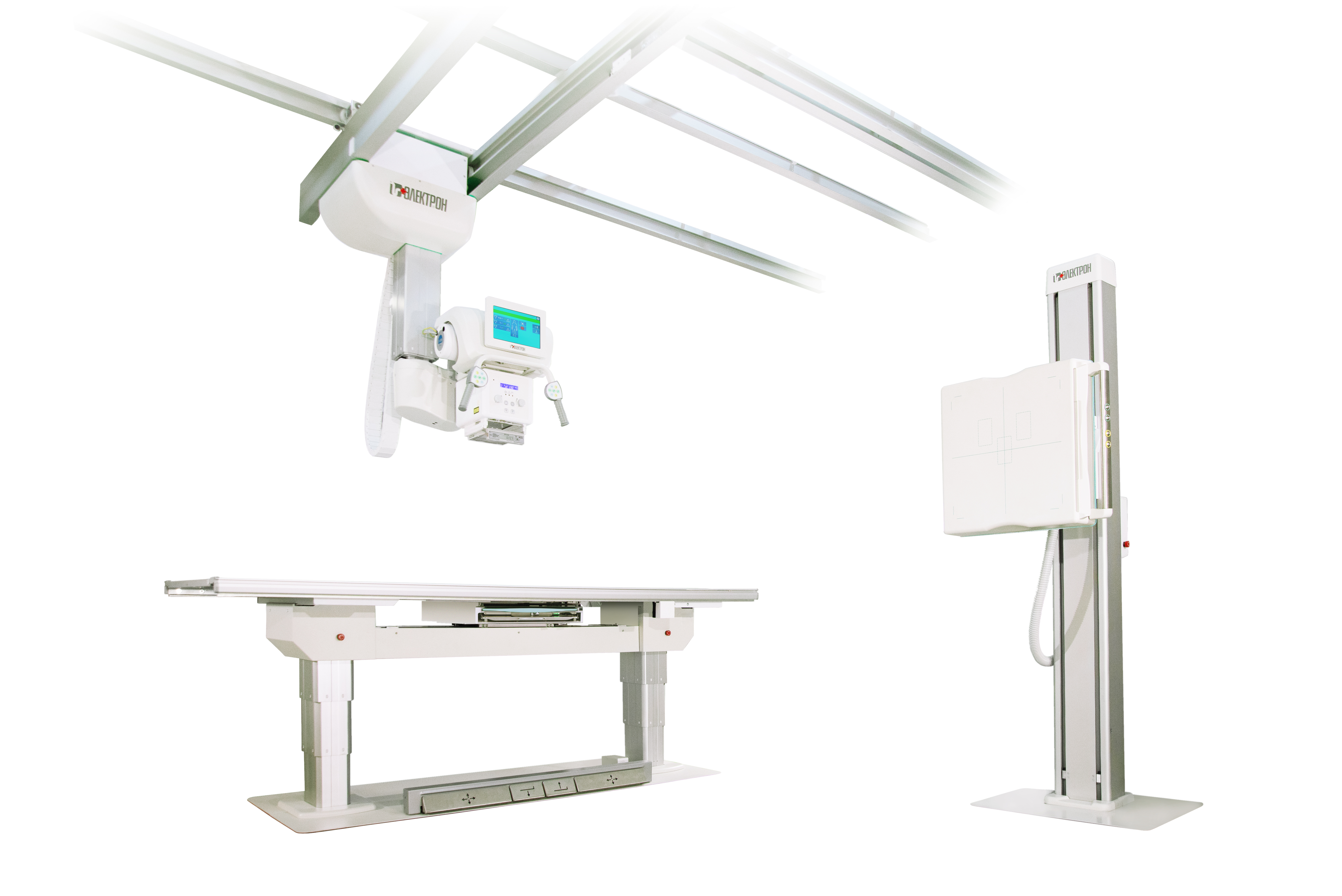

The motorized ceiling suspension of the X-ray tube assembly simplifies the access of medical staff to the patient and frees up space for its free positioning. The high level of automation of stand movements allows you to reduce the preparation time for the study and increase the flow of patients with guaranteed diagnostic quality.

The use of both fixed and mobile flat panel detectors in combination with an advanced stand design gives extraordinary flexibility when conducting any X-ray diagnostic studies. It becomes possible to perform examinations on a mobile table and a wheelchair. An expert level of diagnosis of diseases and injuries of the musculoskeletal system is provided, including spine, skull, limbs and other anatomical areas.

The design of the system provides the possibility of full remote control of all functions of the device and its digital system from the control room, also provides maximum radiation protection of medical staff.

The system can be equipped with a remote-controlled table for fluoroscopy. This configuration of the device allows you to perform the entire range of studies that are in demand in modern radiology, including fluoroscopy, radiography and linear tomography. The system also provides diagnostics in the tomosynthesis mode, dual energy, and has possibility for automatic stitching of images to obtain a panoramic image.

State-of-the-art digital imaging system with unique processing algorithms ensures consistently high image quality of any anatomical region in any examination mode. The exposure dose is minimal due to the high sensitivity of flat panel detectors and the use of automatic exposure control technology. That makes the system one of the safest solutions in the field of X-ray diagnostics.

If necessary, the technical solutions used in the system allow establishing a remote connection online to diagnose and remove faults as well as setting up the system to meet the user’s demands

MoreSkip

Benefits

Easiness, simplicity, and user-friendliness

Fully remote control of all system functions and digital system from the control room
Ergonomic control system
X-ray tube assembly automatic positioning

Mobility and multifunctionality

Motorized ceiling suspension of the X-ray tube provides free access to the patient
Automated stand movement
The ability to make images on a stationary patient table, on a mobile table, on a wheelchair
Any imaging modes - fluoroscopy, radiography, linear tomography, tomosynthesis, double energy, stitching

High diagnostic image quality

State-of-the-art digital imaging system
Automated program filters for automatic image processing
High spatial resolution and speed of fluoroscopy
Maximum possible size of the detector active area
State-of-the-art analysis of examination findings

Safety and low exposure dose

Highly sensitive X-ray detector
Possibility to perform X-ray examination without a grid
Wide APR program range for patients of various age and body build
Automatic exposure control (AEC)
Possibility to perform fluoroscopy examinations not exposing the staff to radiation

Reliability and durability

Two reliable fixed digital detectors
Elaborated and reliable stand design
The generator uses up-to-date knowledge in the field of voltage stabilization and protection against power surges
