Description

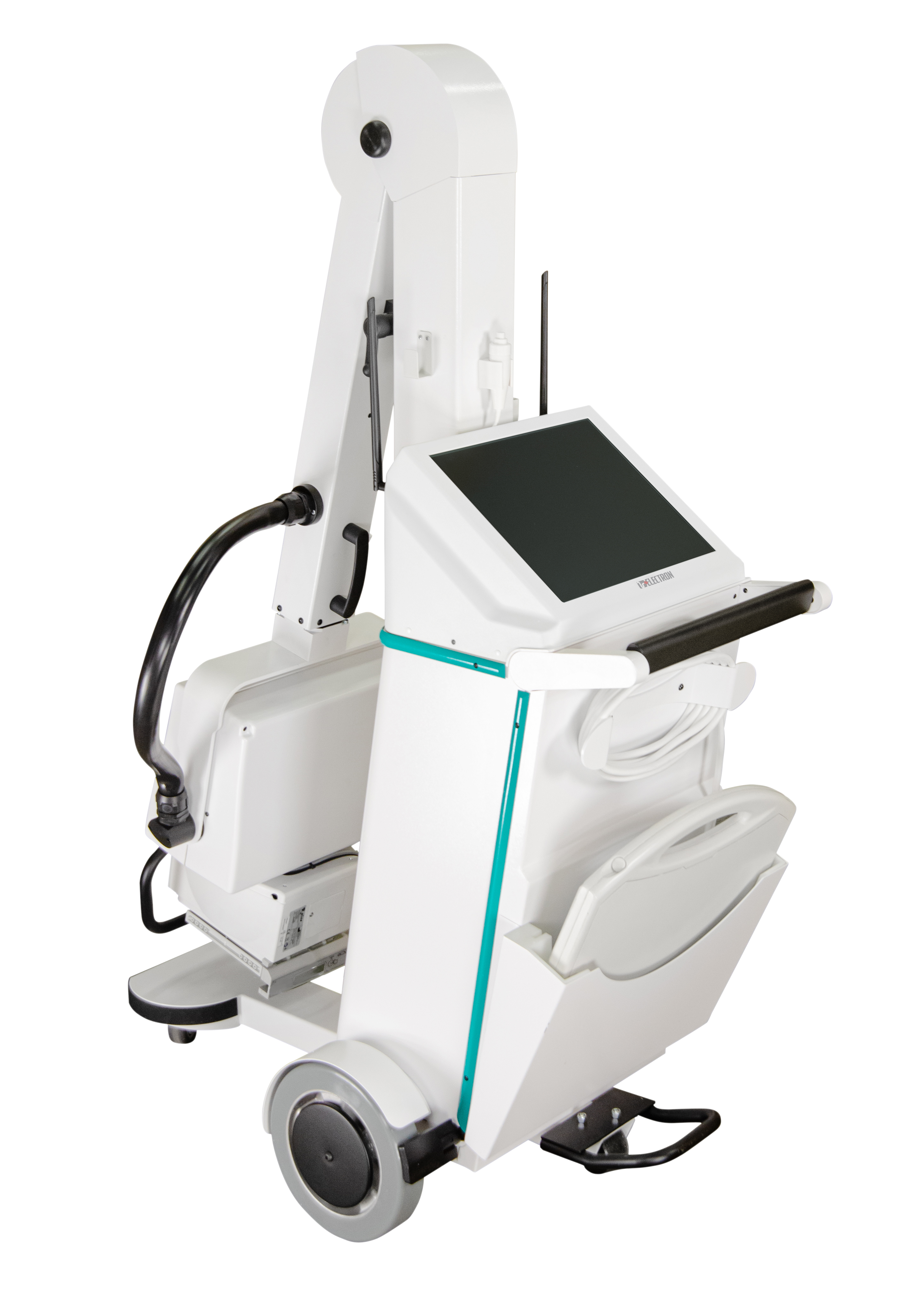

The range of mobile radiography systems manufactured by NIPK Electron Co. combines the high image quality, small size, easiness of movement, and mobility. The systems are designed to perform a wide range of examinations at intensive care units, departments of traumatology, emergency rooms, admission, and hospital wards to perform diagnostic imaging in patients that cannot be moved.
Both digital and film radiography options may be available depending on the modification.
A digital system with a wired or Wi-Fi flat-panel detector and built-in operator’s automated workstation is the most comfortable and modern solution today; these components allow obtaining and transferring high quality images rapidly irrespective of the examination location. A wide dynamic range, high DQE and contrast sensitivity of detector provide for imaging of both bone structures and soft tissues. The image quality achieved using mobile radiography systems is the same as that of the images made using modern high-class fixed systems.

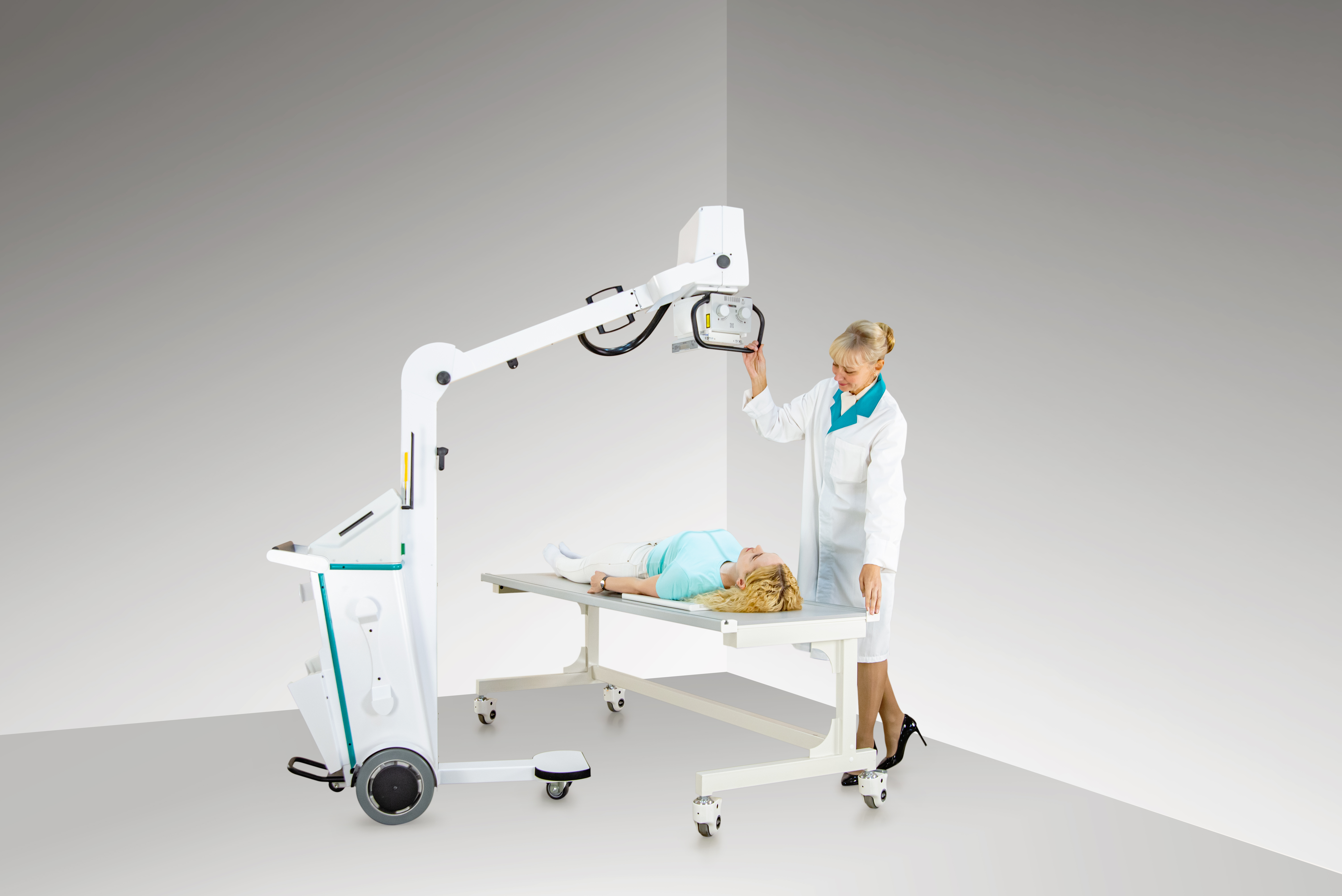

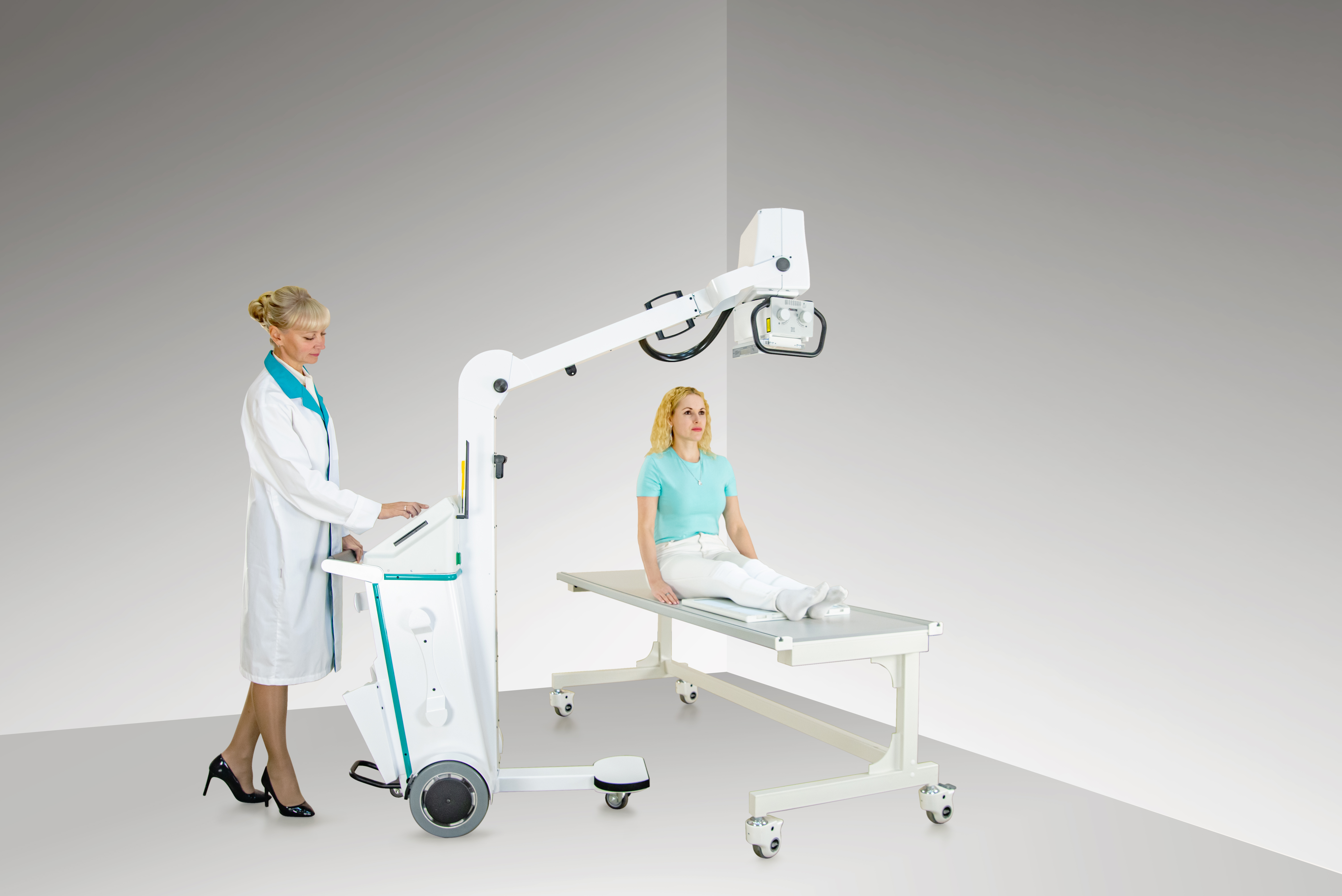

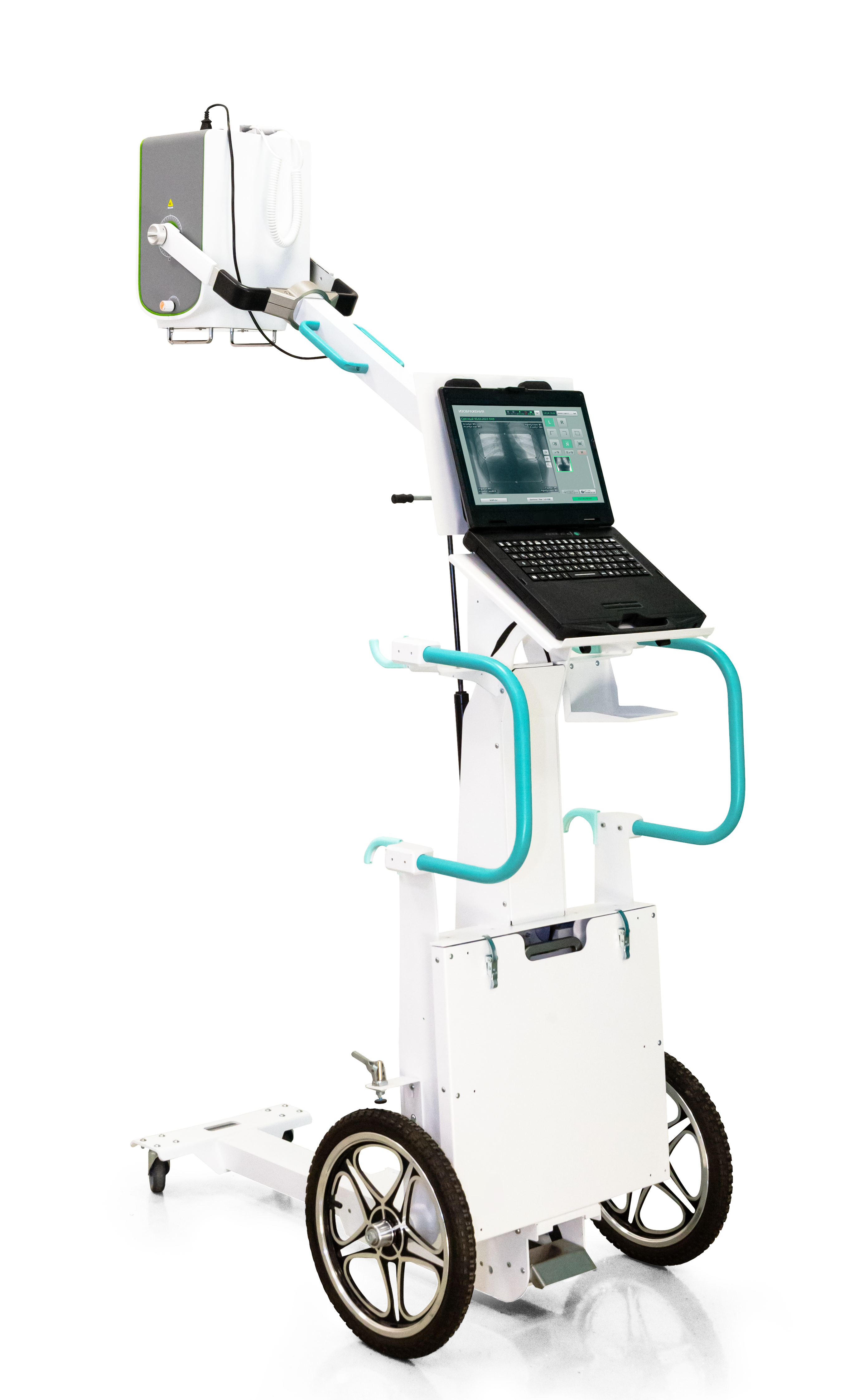

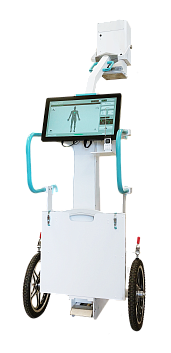

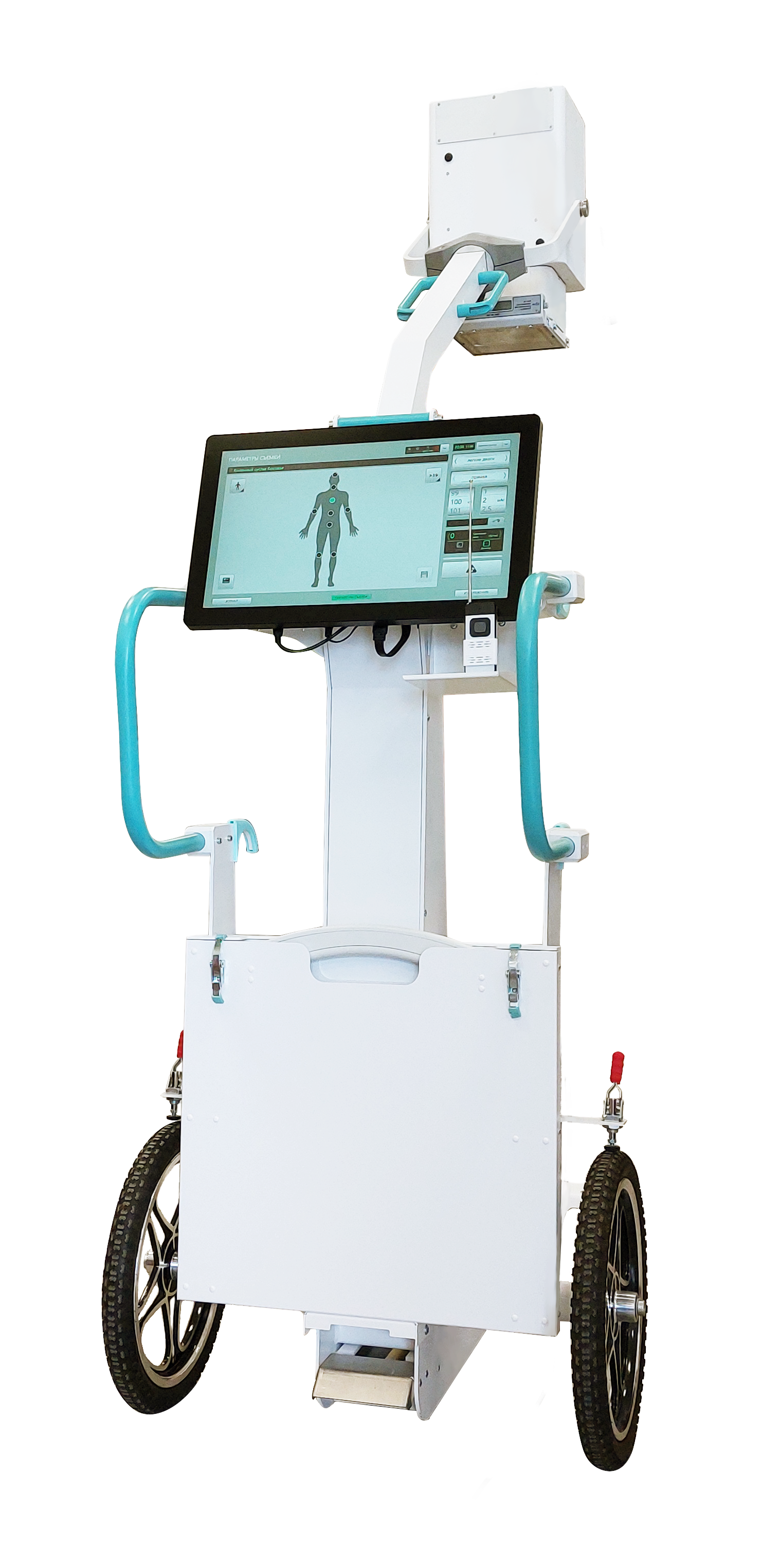

A lightweight, mobile, and well-balanced stand allows moving the system without any effort, ensures positioning convenience and accuracy. A wide range of X-ray tube assembly rotations allows performing imaging in oblique views.
The possibility to move forward support with an X-ray tube assembly for more than 100 cm relative to a stand helps to perform examinations of any regions in a bedridden patient.

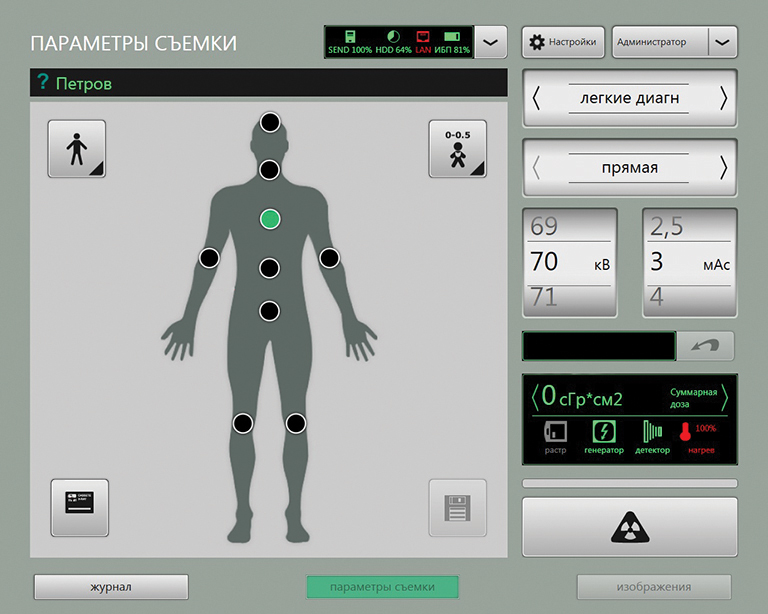

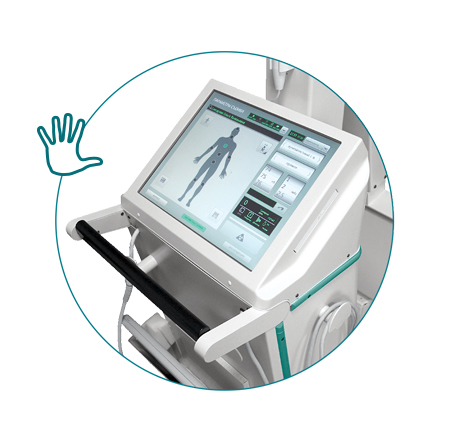

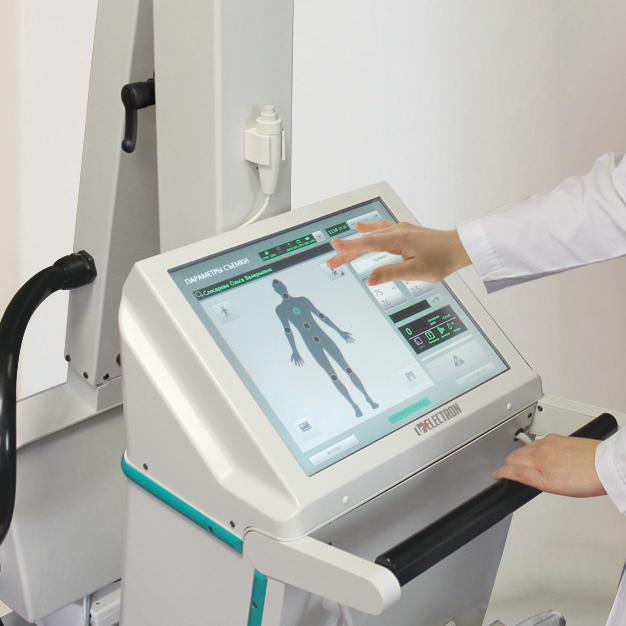

A built-in operator’s automated workstation provides for comfortable system control using a touch display which is protected from accidental pressing. The wide software resources and a user-friendly multiningual interface allow simplifying and facilitating the work of the radiology technician to the maximum extent.
Mobile radiography systems on a motorized stand with built-in rechargeable batteries make it possible to move the system without any effort and perform imaging without connecting it to the power grid. The system features a small-sized body and has the minimum weight and overall dimensions among all systems of this class available on the Russian market.
If necessary, technical solutions used in the mobile radiography systems produced by NIPK Electron Co. allow implementing the remote connection in the online mode to diagnose, removing faults, and setting up the system in accordance with user demands.
Read moreSkip
Both digital and film radiography options may be available depending on the modification.
A digital system with a wired or Wi-Fi flat-panel detector and built-in operator’s automated workstation is the most comfortable and modern solution today; these components allow obtaining and transferring high quality images rapidly irrespective of the examination location. A wide dynamic range, high DQE and contrast sensitivity of detector provide for imaging of both bone structures and soft tissues. The image quality achieved using mobile radiography systems is the same as that of the images made using modern high-class fixed systems.
A lightweight, mobile, and well-balanced stand allows moving the system without any effort, ensures positioning convenience and accuracy. A wide range of X-ray tube assembly rotations allows performing imaging in oblique views.
The possibility to move forward support with an X-ray tube assembly for more than 100 cm relative to a stand helps to perform examinations of any regions in a bedridden patient.
A built-in operator’s automated workstation provides for comfortable system control using a touch display which is protected from accidental pressing. The wide software resources and a user-friendly multiningual interface allow simplifying and facilitating the work of the radiology technician to the maximum extent.
Mobile radiography systems on a motorized stand with built-in rechargeable batteries make it possible to move the system without any effort and perform imaging without connecting it to the power grid. The system features a small-sized body and has the minimum weight and overall dimensions among all systems of this class available on the Russian market.
If necessary, technical solutions used in the mobile radiography systems produced by NIPK Electron Co. allow implementing the remote connection in the online mode to diagnose, removing faults, and setting up the system in accordance with user demands.
Benefits
High diagnostic image quality- State-of-the-art digital imaging system
- Automated program filters for automatic image processing
- High spatial resolution
- State-of-the-art analysis of examination findings
Easiness, simplicity, and user-friendliness
-
Built-in operator’s automated workstation
- Color touch display
- Multilingual interface

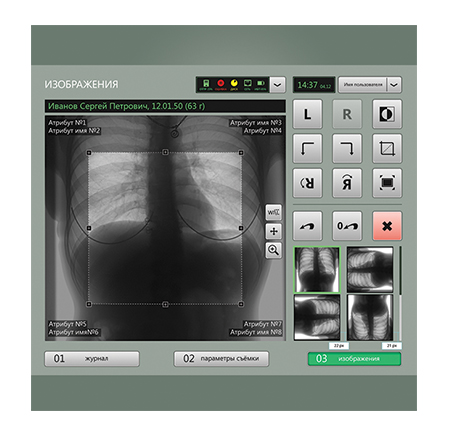

- Image view and processing option using the built-in operator’s automated workstation
- Built-in dose meter for absorbed dose check
- Disk recording and examination result archiving option
- Sending images to the PACS
Mobility and multifunctionality
-
Lightweight, mobile and well-balanced stand including a motorized stand
- Footboard for passing door sills and low steps
- A wide range of X-ray tube assembly rotations

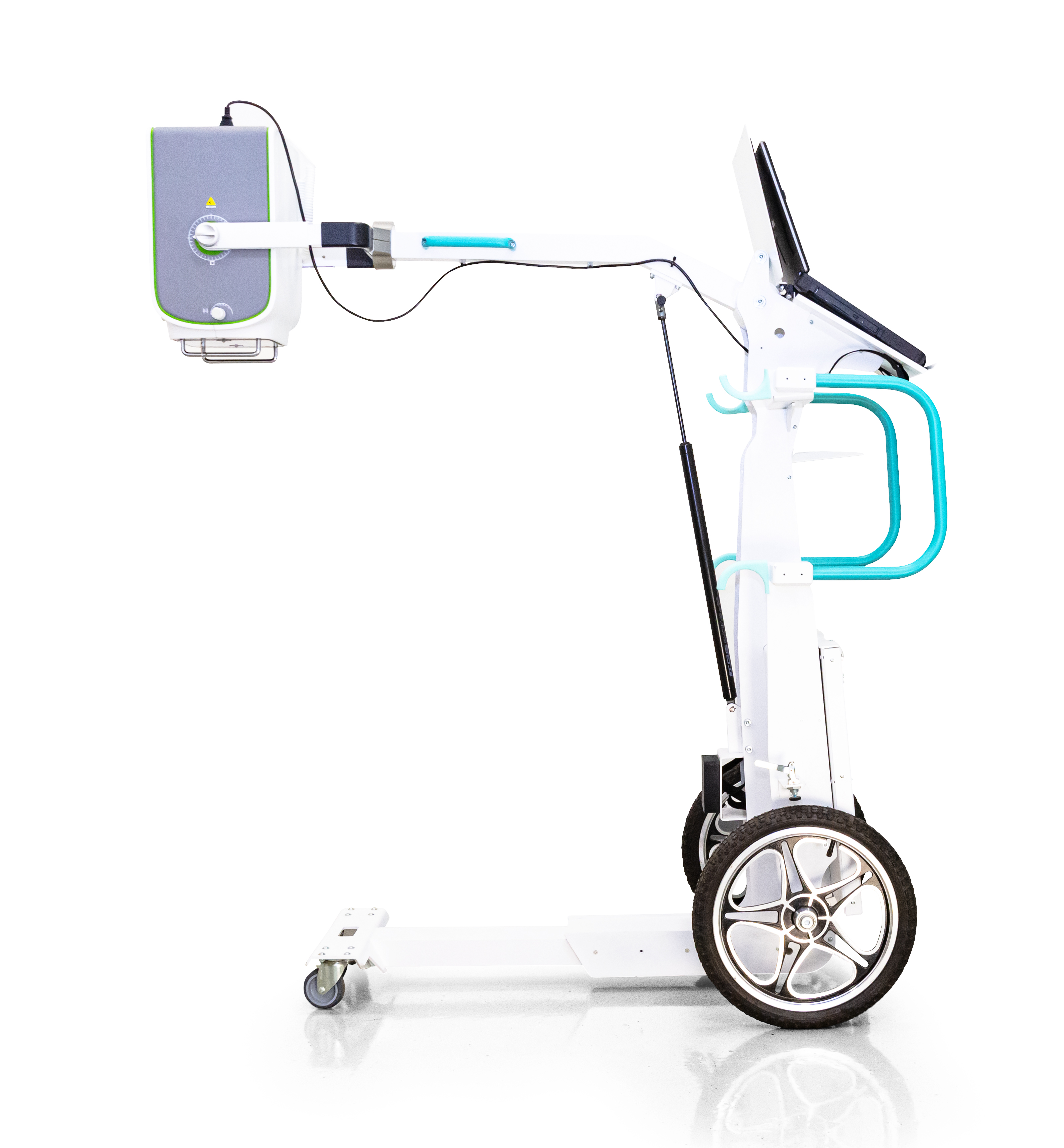

- Possibility to move forward a support with an X-ray tube assembly for more than 100 cm relative to the stand
- Equipping with a mobile vertical stand is possible
Safety and low exposure dose
-
Highly sensitive X-ray detector
- APR programs for patients of different ages and body-build
- Built-in operator’s automated workstation display protection against accidental pressing
- Treatment of a display with disinfecting solutions are allowed
- Exposure remote switching panel
- Braking system is unlocked by pressing the system movement handle or the special foot pedal
Надежность и долговечность
- Elaborated, simple and reliable system design
- The newest products in the field of voltage stabilization and protection against power surges
Basic configuration *
Description
High voltage generator (HVG)
- from 4 kW; from 15 kW; from 25 kW; from 40 kW
Flat panel detector for radiography

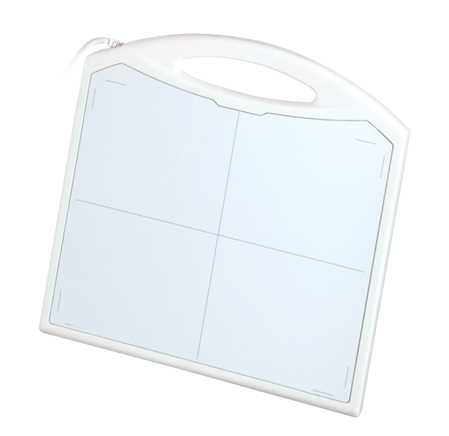

- Mobile wired or Wi-Fi flat panel detector
- CR-cassettes with the cassette digitizer
- Film cassettes
Mobile stand
- Lightweight stand, without motorization
- Stand with built-in rechargeable batteries, without motorization

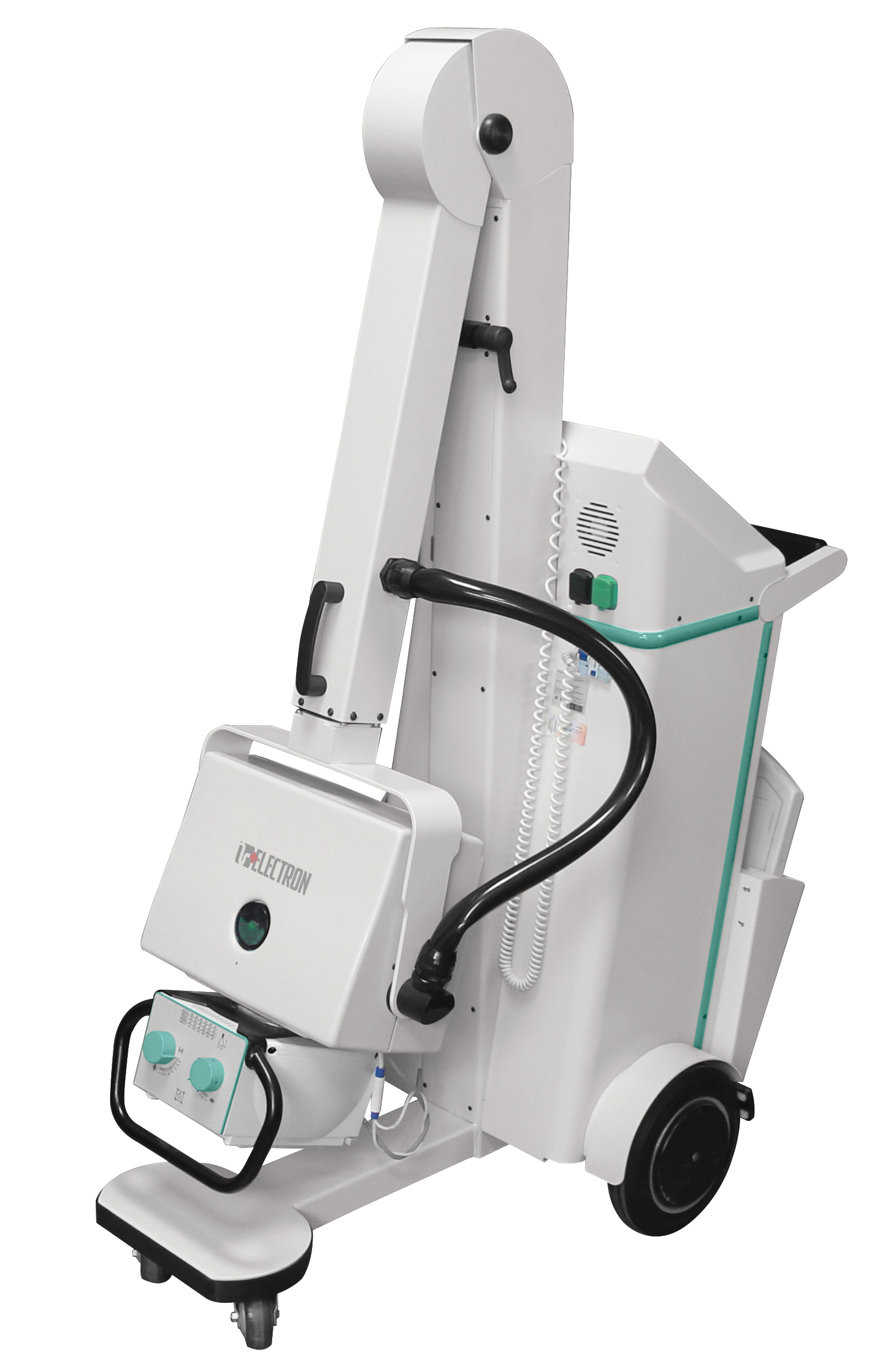

- Motorized stand with built-in rechargeable batteries
Automated workstations (AWS) for digital systems
- Built-in operator’s automated workstation
- Workstation for the work with examination findings (radiologist’s AWS)
Additionally:
- medical monitors
- medical printer
- clinician’s workstations
- operator’s workstations
- PACS-server
Specialized software (SW) for radiology technicians and radiologists
- Operating the patient and image databases
- Specialized APR programs including that for pediatrics
- Multimodality
- Support of DICOM 3.0 standard
- Image postprocessing
- X-ray dosimetry
- Color X-ray technology
Accessories
- Mobile vertical stands
- X-ray transparent wheel table
X-ray radiation protective equipment for patients and staff
- X-ray protective clothes for the medical staff
- Personal protection equipment for patients
* The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.
